Description

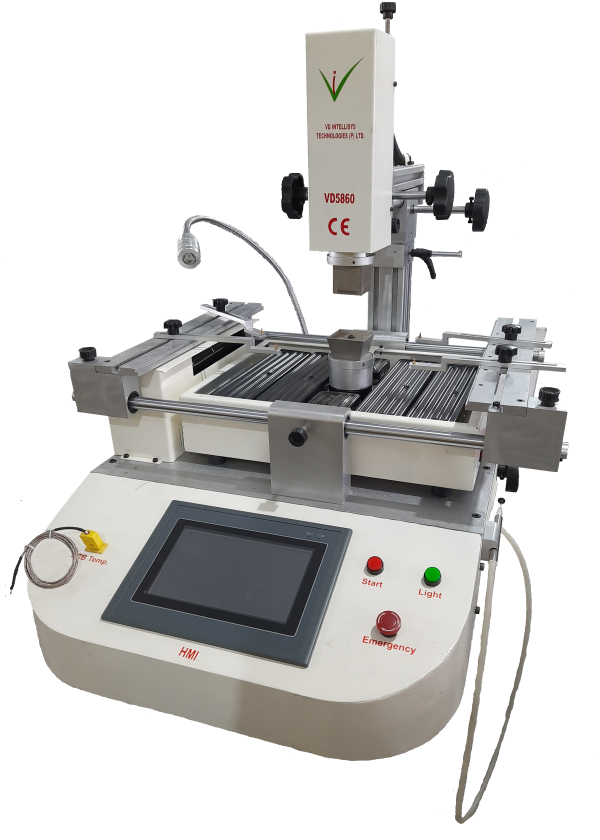

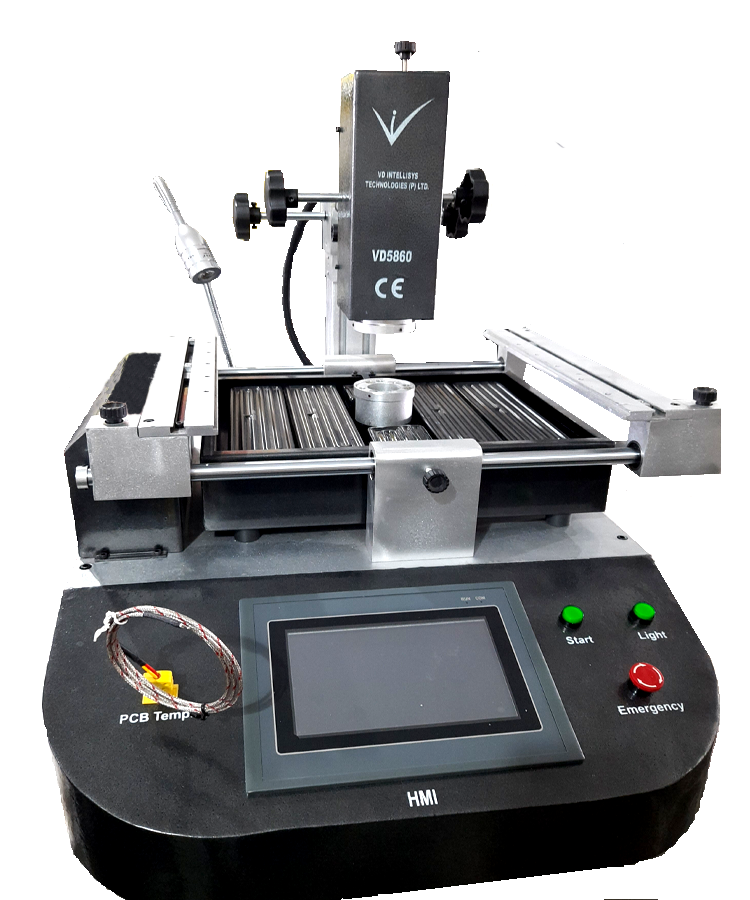

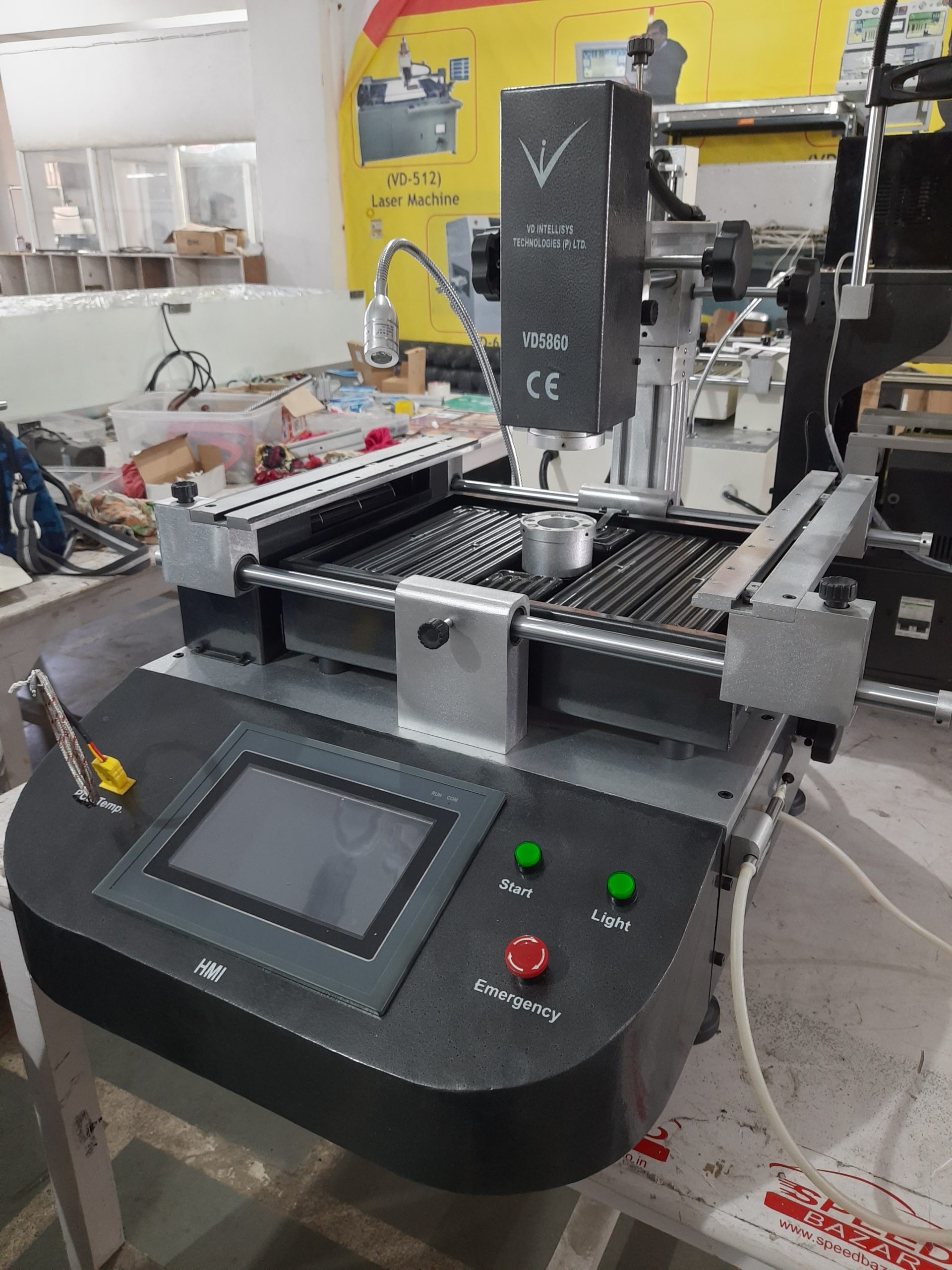

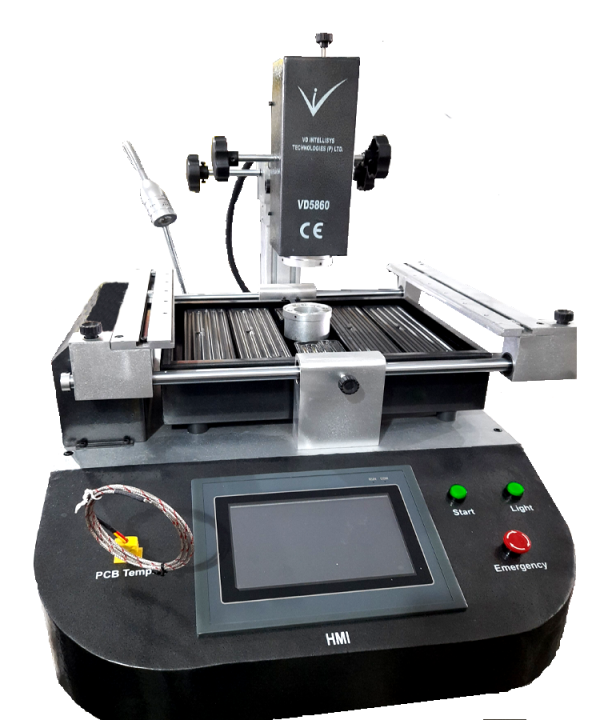

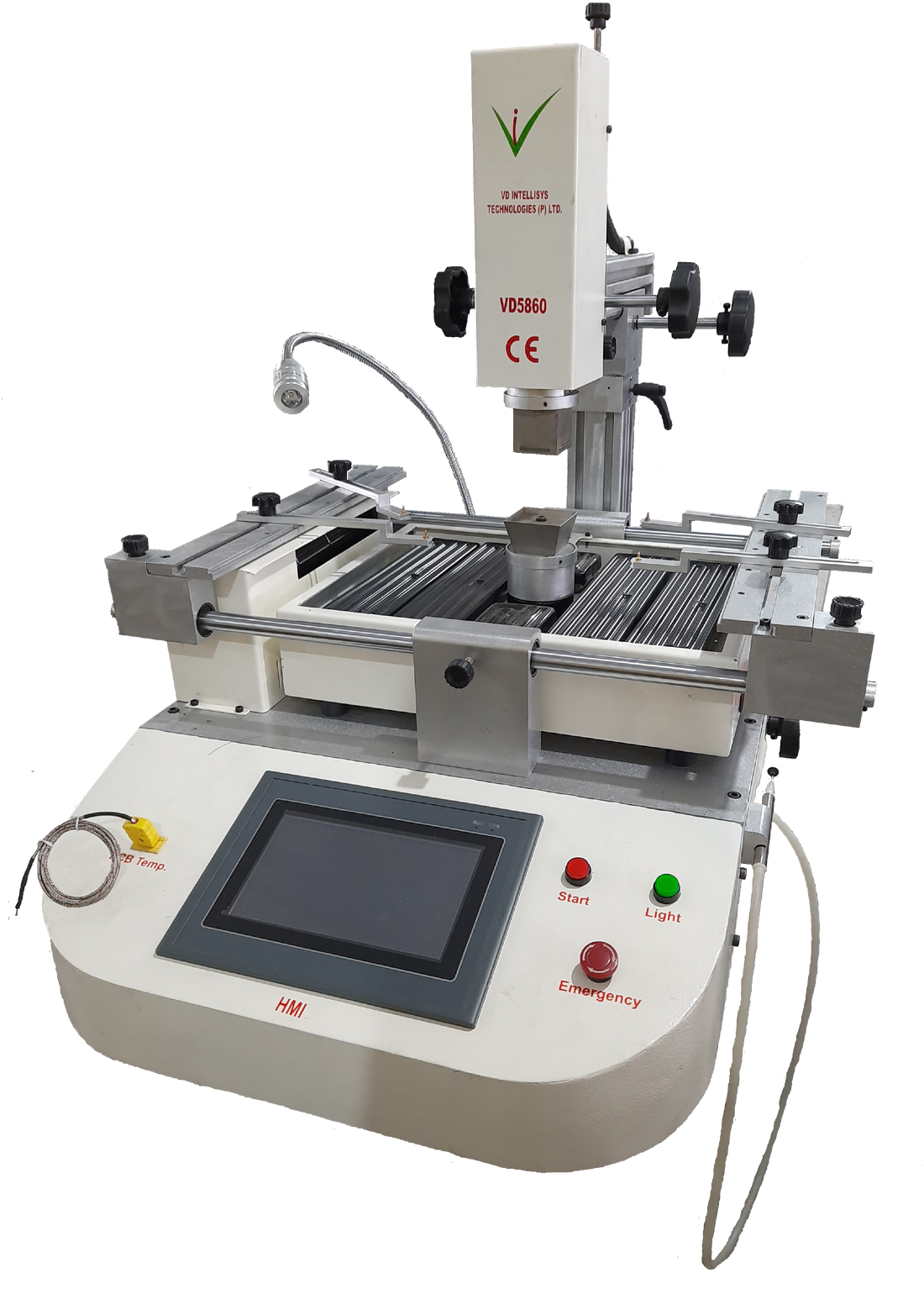

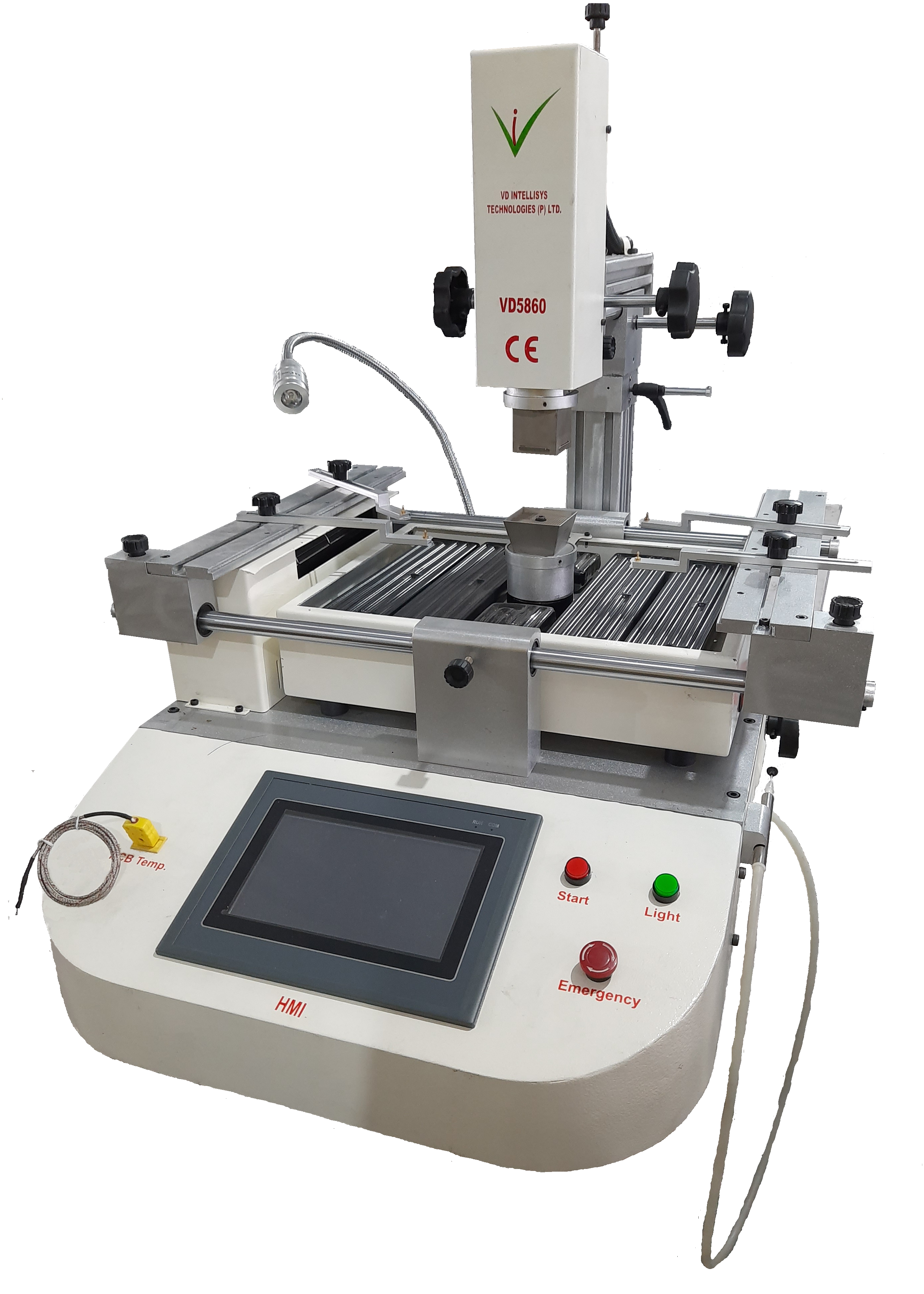

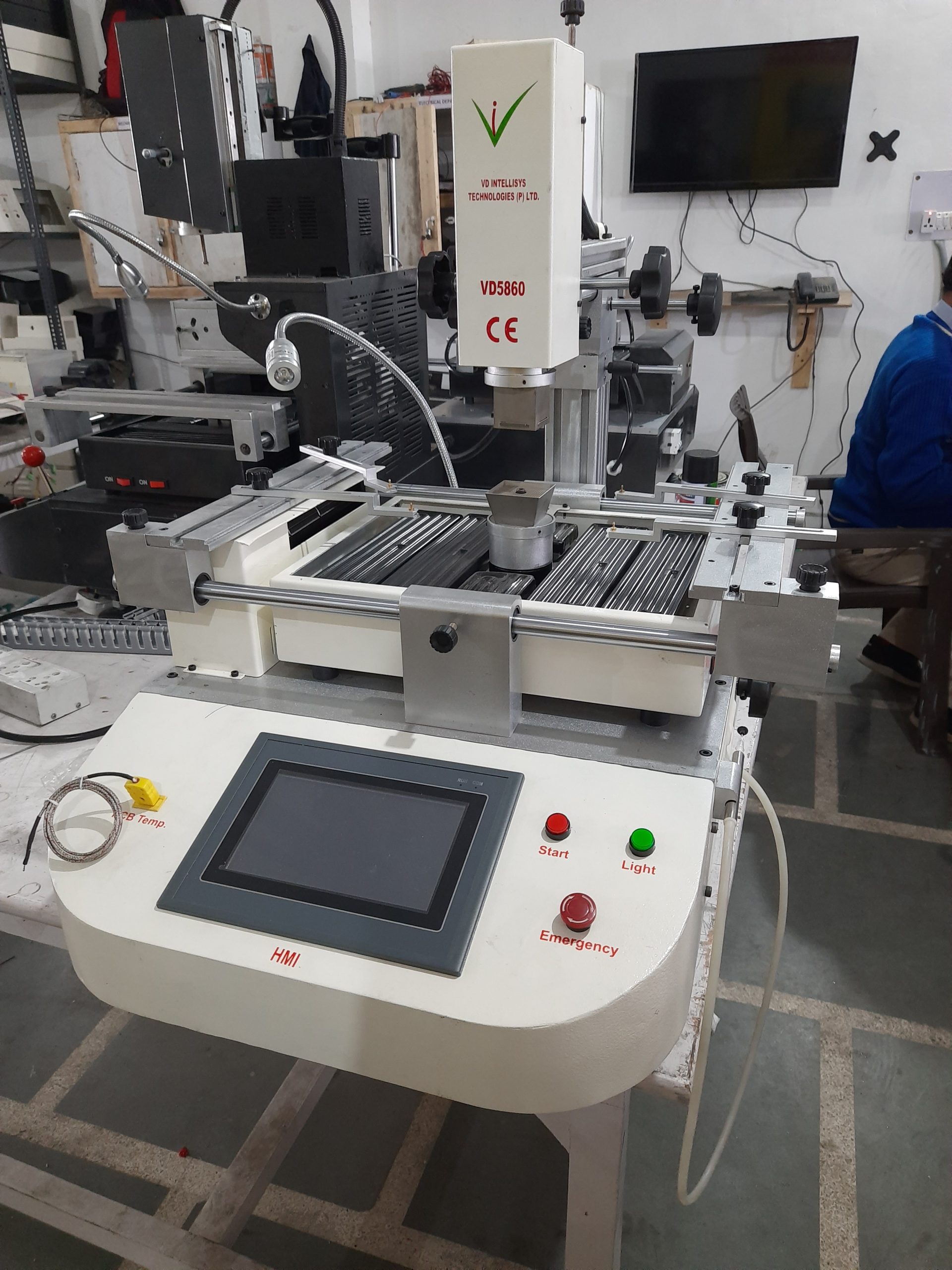

VD-5860 Semi-Automatic BGA Rework Station
The VD-5860 BGA Rework Station is a robust and efficient solution for precise BGA, CSP, and other SMD components rework. This semi-automatic machine is engineered for high performance, combining advanced technology and ease of use to deliver excellent results. Equipped with a Mitsubishi PLC, the temperature profile runs automatically, offering reliable and accurate thermal control, critical for sensitive electronic components.

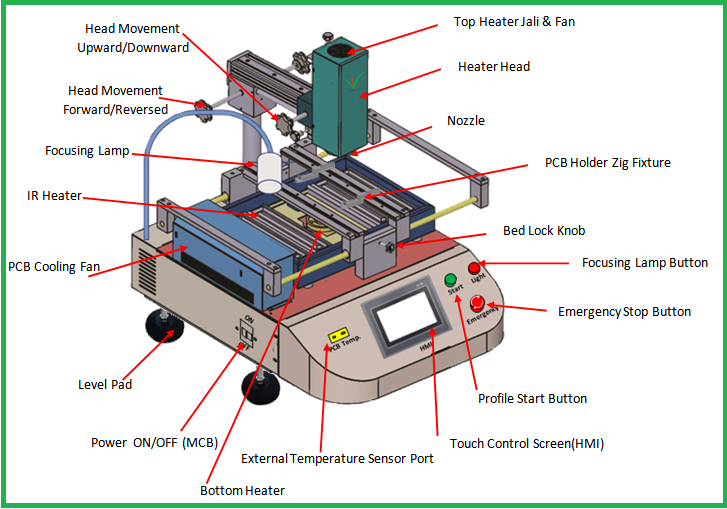

While the VD-5860 does not feature a camera for soldering alignment, it is designed with a V-shape card slot and adjustable PCB holders, making manual alignment straightforward and efficient. The machine is also fitted with a 7-inch HMI for intuitive control, allowing operators to easily manage settings and monitor processes.
Key highlights of the VD-5860 include a precise K-type thermocouple closed-loop system, high-efficiency heating zones, and an independent temperature control system, ensuring that all components are handled with care, minimizing thermal stress.
Specifications:
| Feature | Details |
| Total Power | 4800W |
| Upper Heating Power | 800W |
| Lower Heating Power | Second zone: 1200W, Third zone: IR 2700W |
| Power Supply | AC 110V/220V ±10% 50/60Hz |
| Overall Dimensions | L760 × W760 × H680 mm |
| Locating Mode | V-shape card slot, PCB holder adjustable by X and Y axes with universal jigs |
| Temperature Control | K-type thermocouple closed loop control, precision ±3°C |
| PCB Size | Max 420 × 370 mm, Min 10 × 10 mm |
| Electrical Material | High-sensitive temperature control module, Mitsubishi PLC, Taiwan-made touch screen |
| Machine Weight | 40kg |
The VD-5860 combines advanced thermal management with user-friendly operation, making it a perfect choice for high-precision rework in electronics manufacturing. Whether handling small or large PCBs, this machine ensures high quality and consistent results.
